Overview

This week, the team worked on buying all of the components that will be needed for the project. Apart from that, the week’s work was divided in four main fronts:

  1. Mechanical design
  2. Backend design
  3. Pressure monitor reverse engineering
  4. Experimenting with Text to Speech (TTS) and Speech to Text (STT) solutions

Mechanical design

Here is the mechanical design so far

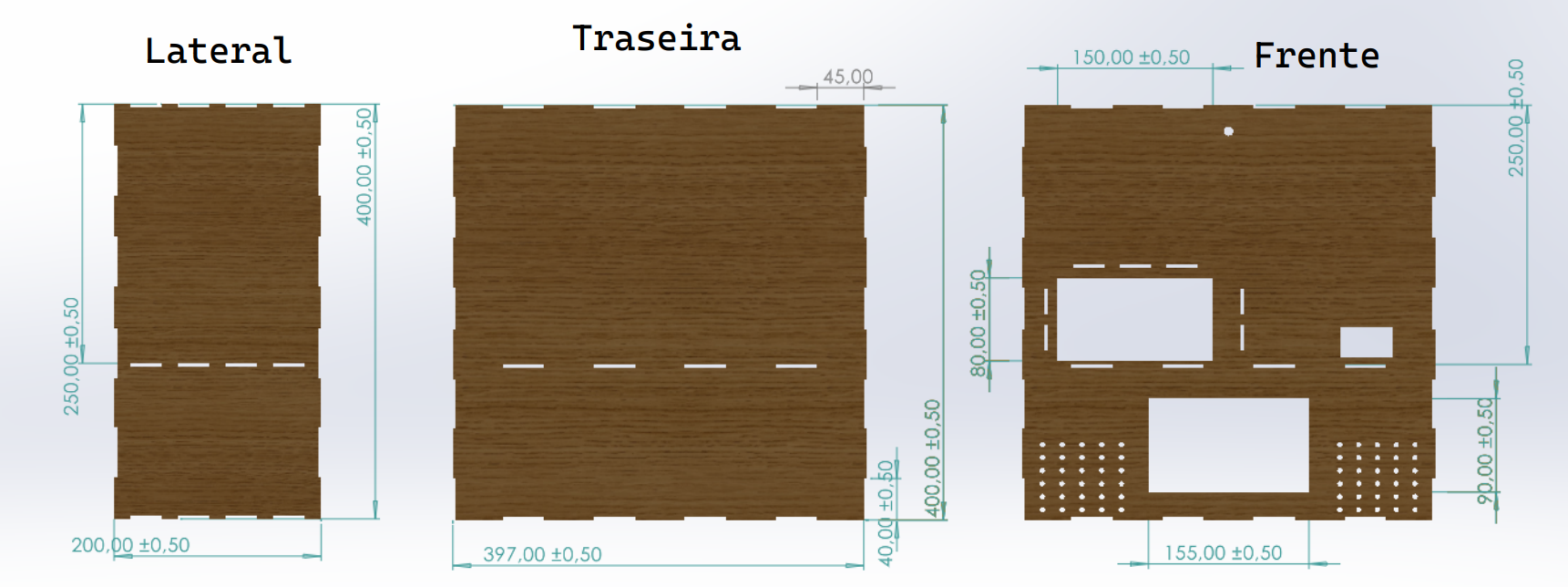

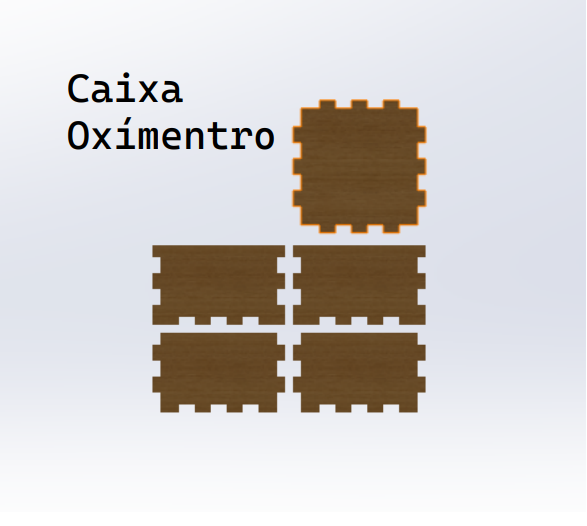

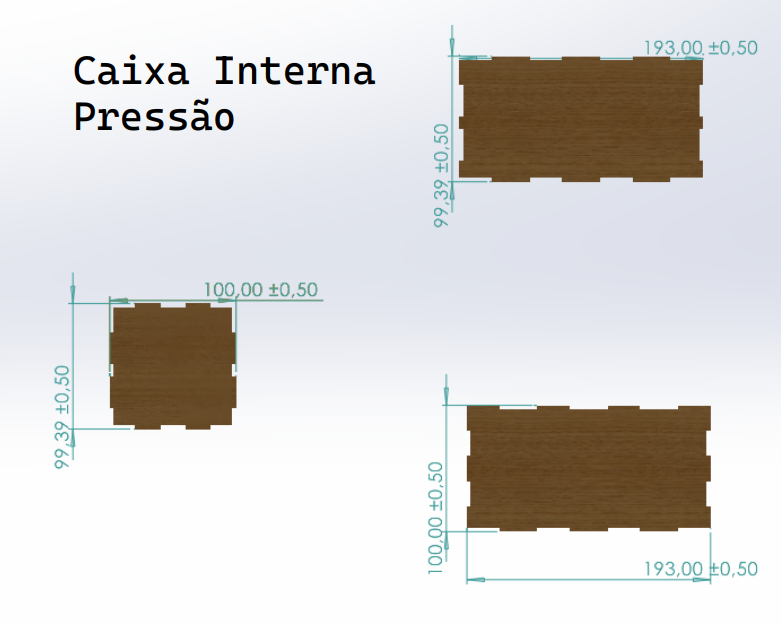

“Mechanical design image 1” “Mechanical design image 2” “Mechanical design image 3” “Mechanical design image 4”

the servomotor controlled doors are going to be constructed using a hinge shown in this video

Backend design

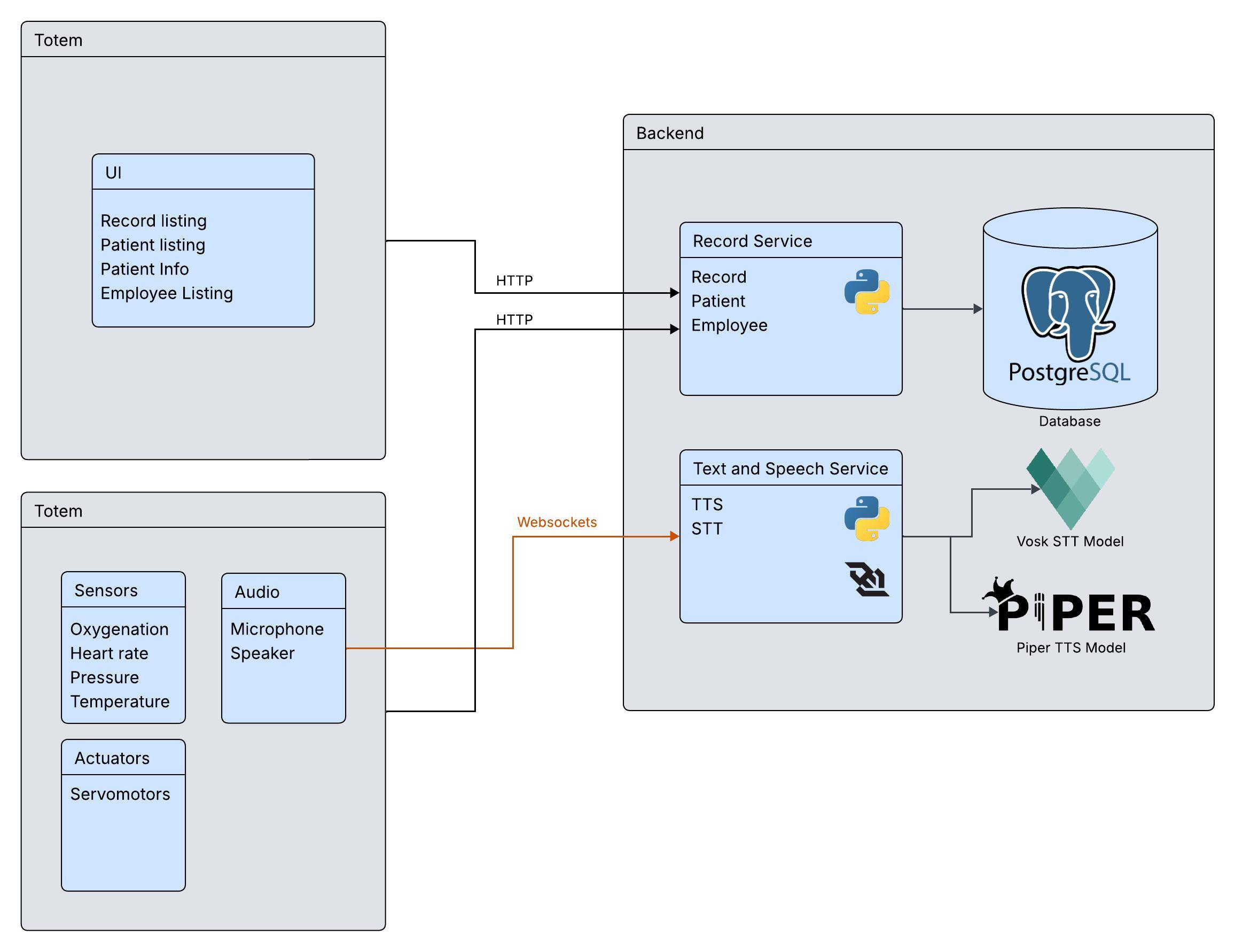

Overview

“Design Overview”

The system’s backend was designed following UML principles, and so here are UML several different diagrams

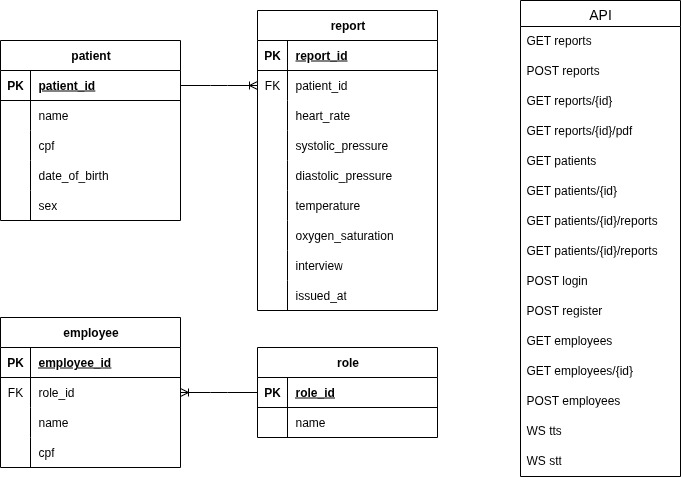

Entity Relation diagram

“Entity Relation diagram”

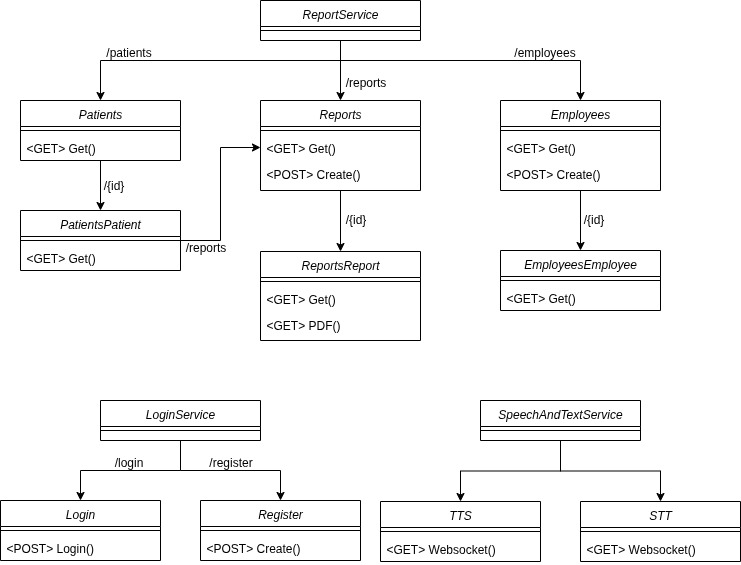

Class diagram

“Class diagram”

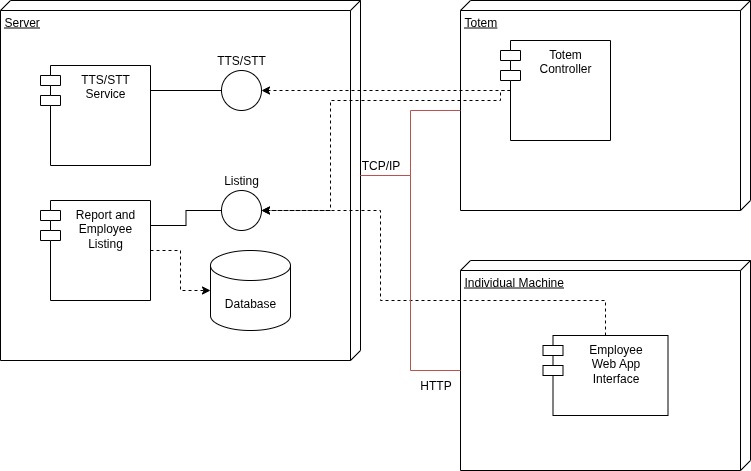

Deployment diagram

“Deployment diagram”

Use-case diagram

“Use-case diagram”

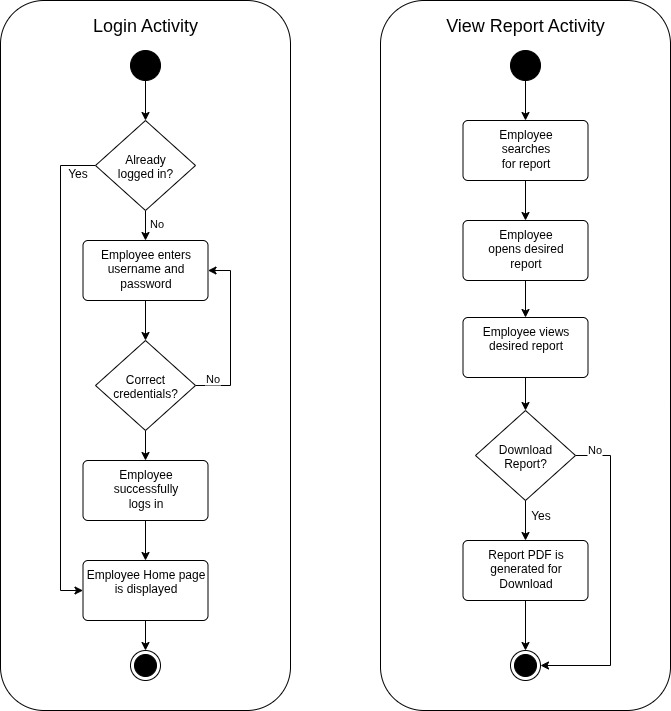

Activity diagram

“Activity diagram”
